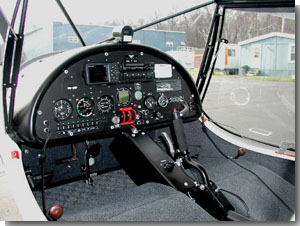

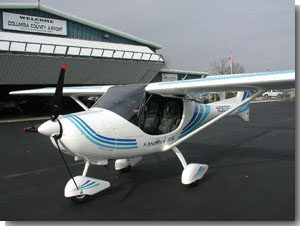

| The Fantasy Air USA Allegro 2007 is a modern, two-seat Light Sport Aircraft (S-LSA) that has built a solid reputation for excellent flight qualities, low drag aerodynamics and economy of operation for over a decade. This classical high-wing aircraft has two side-by-side seats, spacious cockpit (wider than a C172) and panoramic view through its large Lexan doors and overhead skylight. |
 |
 |
The T-tail, fixed tricycle gear and steerable nose wheel ensure positive control, both in the air and on the ground. The Allegro's aerodynamically shaped Kevlar composite fuselage and clean, gel coated surface provide maximum economy. The wing, tail plane and rudder are of all metal construction, making the allegro a durable aircraft able to withstand extreme climates. Electrically operated flaps, which produce stall speeds of 40 MPH and hydraulic brakes make this a great aircraft for short field operations. |
SPECIFICATIONS:
| Fuselage |
Composite |
| Wing |
Metal tapered tip, profile SM 701 |
| Engine |
Rotax 912-S UL (100 HP) |
| Total Fuel Capacity |
14.5 gallons |
| Propeller |
3-blade WOODCOMP |
DIMENSIONS:
| Wing Span |
35 ft. 5 in. |
| Overall Length |
20 ft. 10 in. |
| Overall Height |
6 ft. 9 in. |
| Wing Area |
12 sq. ft. |
| Gliding Quality |
1:12 |
WEIGHTS:
| Max T. O. |
1232 lbs. |
| Basic Empty Weights |
628 lbs. |
| Limit Load Factors |
+4.0 G –2.0 G |
PERFORMANCE: (Max. Weight)
| Max Speed |
137 MPH |
| Stall Speed (with flaps) |
40 MPH |
| Cruise Speed (75%) |
110 – 120 MPH |
| Rate of Climb |
1000 FPM |
| Max Range |
350 miles |
| Take-Off Run |
490 ft. |
| Take-Off to Clear 50ft. |
820 ft. |
| Landing Run |
340 ft. |
| Landing Over 50' Obstacle |
721 ft. |
|
 |
|
